Cannulated Bone Screw 4) 4.0 mm Self drilling Short thread in Stainless steel (100 ITEMS PER LOT)

Cannulated Bone Screw 4)4.0 mm, Self drilling, Short thread in Stainless steel, (100 ITEMS PER LOT)

IMPORTANT NOTICE: Customers Can Choose Different Size By Need. Send us Size and Units with the Note of Your Order. Or you can choose directly one by one from the page. Thank you very much, Product is for Orthopedic use, Hospitals, Clinics, Traumatology and Orthopedics doctors.

Specification:
Thread diameter 4.0 mm
Core diameter 2.25 mm
Head diameter 5.0 mm
Shaft diameter 2.6 mm
Drill bit for threaded hole 2.7 mm
Hexagonal socket width 2.5 mm
Cannulation 1.35 mm
Thread pitch 1.75 mm

Stainless steel

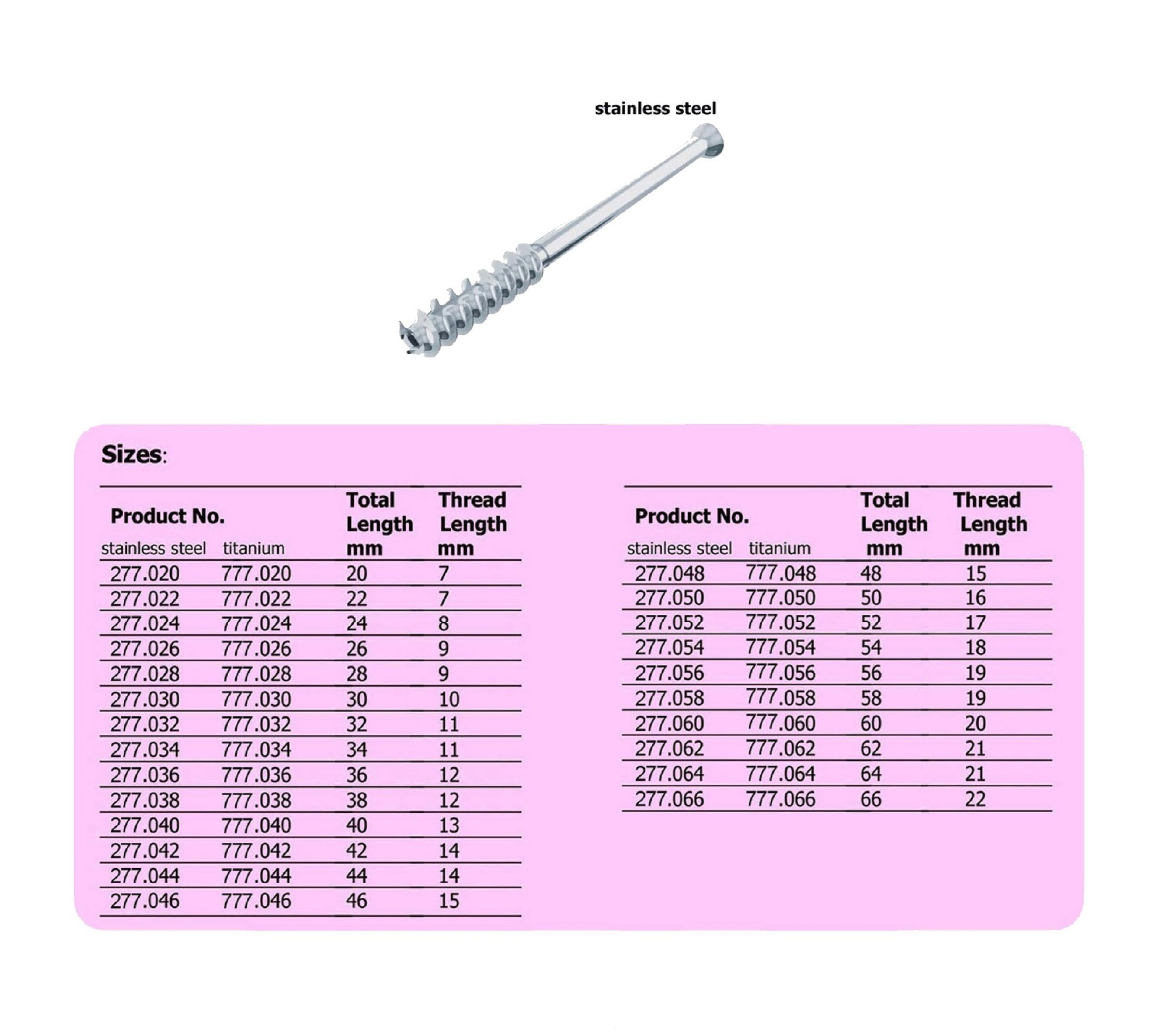

Product Nº. Total length mm
277.020 -Total length-20mm
277.022 -Total length-22mm
277.024 -Total length-24mm
277.026 -Total length-26mm
277.028 -Total length-28mm
277.030 -Total length-30mm
277.032 -Total length-32mm
277.034 -Total length-34mm
277.036 -Total length-36mm
277.038 -Total length-38mm
277.040 -Total length-40mm
277.042 -Total length-42mm
277.044 -Total length-44mm
277.046 -Total length-46mm

277.048 -Total length-48mm
277.050 -Total length-50mm
277.052 -Total length-52mm
277.054 -Total length-54mm
277.056 -Total length-56mm
277.058 -Total length-58mm
277.060 -Total length-60mm
277.062 -Total length-62mm
277.064 -Total length-64mm
277.066 -Total length-66mm
Manufacturer by MÜNCHEN STEEL® Stainless Germany.
