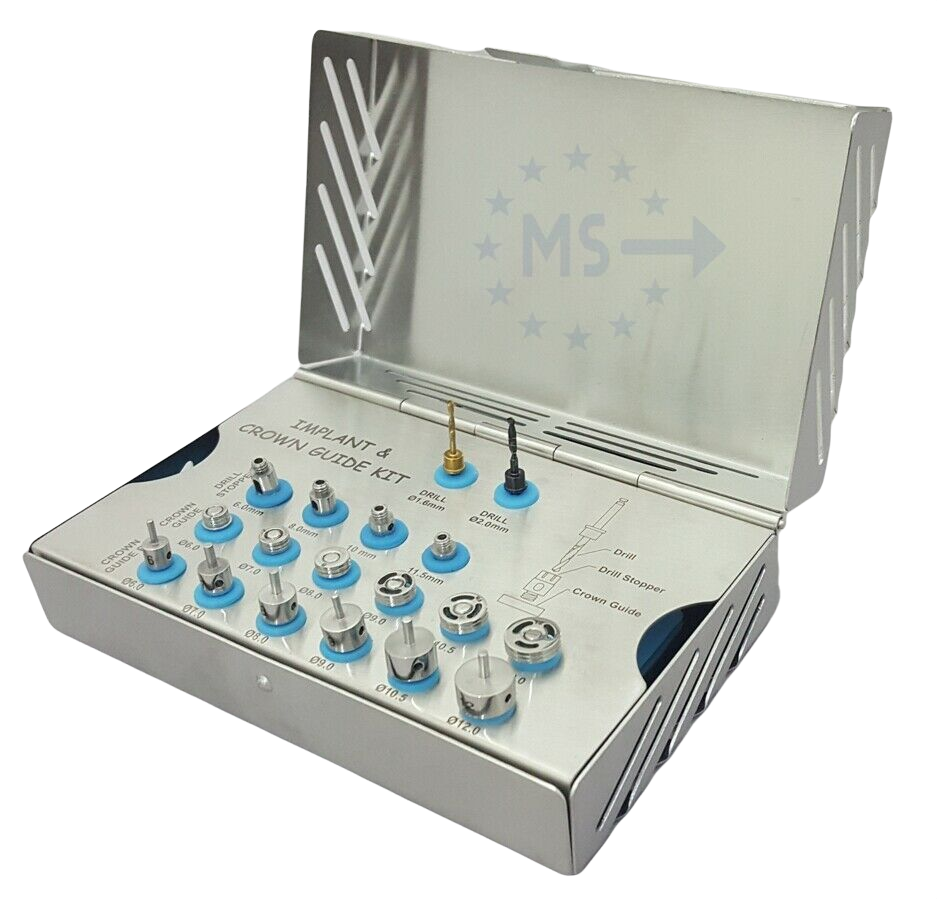

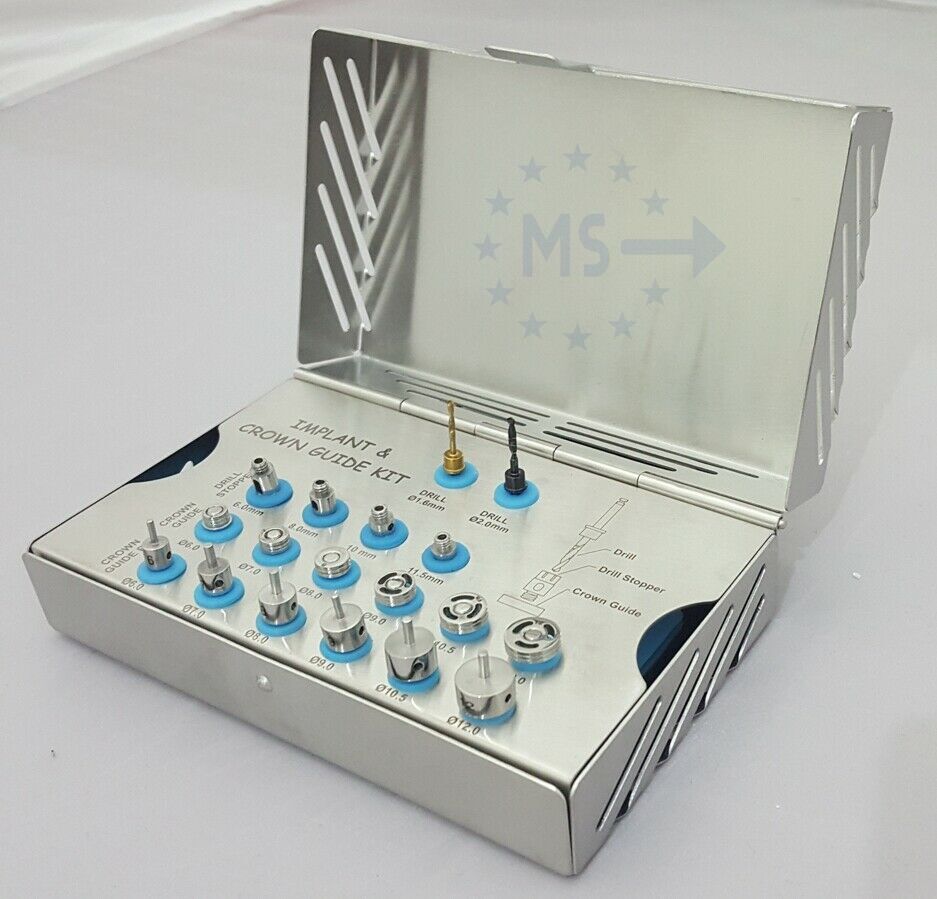

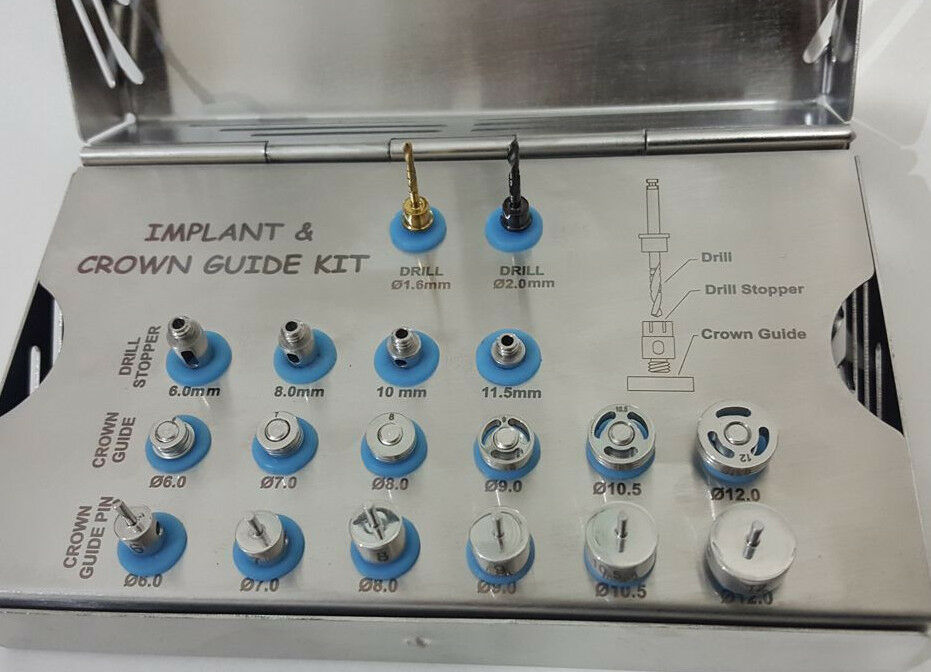

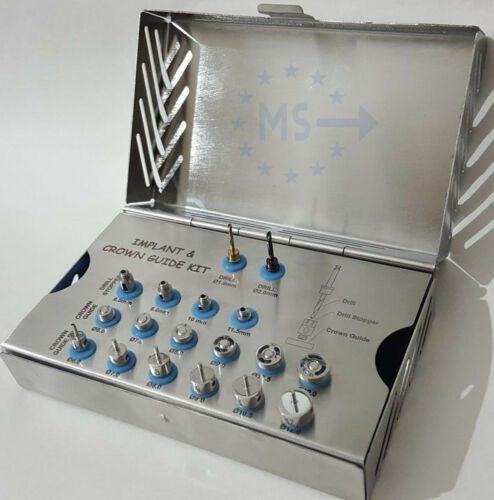

Dental Implant & Crown Guide Kit (Professional kit) / Surgical implant Kit 18 Units

DESCRIPTION

Dental Implant & Crown Guide Kit (Professional kit) / Surgical implant Kit 18 Units

PROFESSIONAL DENTAL IMPLANT INSTRUMENTS
DENTAL IMPLANT & CROWN GUIDE KIT, 18 Units
Smart Implant Guide Drills Kit
Compatible with all implant systems!

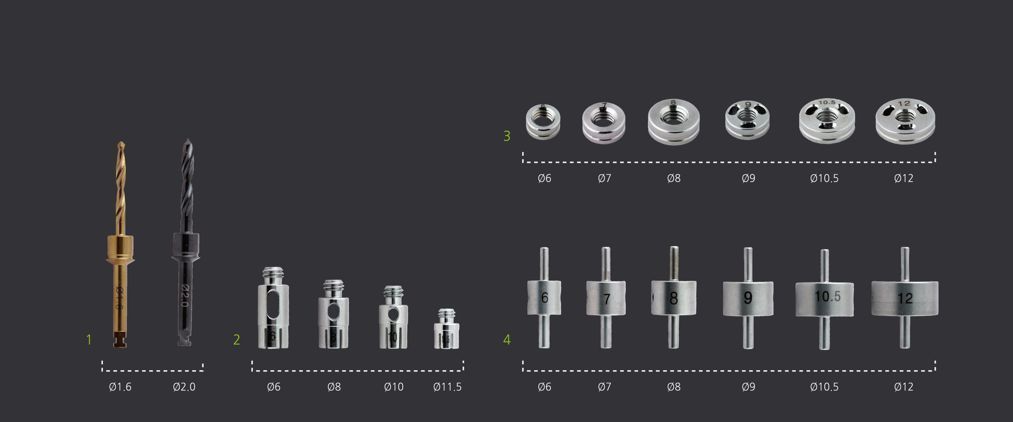

Contains 18 PCs, 2 Drills 1.6, 2.0mm diameters External Irrigation

1. Initial Drill : Ø1.6 , Ø2.0 (total 2 EA), Stopper can be installed. Used for the Initial drilling.

2. Stopper : 6mm, 8mm, 10mm, 11.5mm (total 4 EA) It plays a role of an Initial Drill Stopper where the Crown Guide is connected.

3. Crown guide : Ø6, Ø7, Ø8, Ø9, Ø10.5, Ø12 (total 6 EA) It provides guide to the centering and directing with intervals at the same time appropriately for the crown size (implanted prosthesis) during the drilling.

4. Crown Guide Pin : It is used for deciding the crown size at the implant placing position before the initial drilling. It guides the implant interval while playing a role of implant drill guide when drilling is carried out after the first drilling is placed during the implant placing.

HOW TO USE
1-Put the crown Guide Pin onto the implant placing position using tweezers.
2-Combine an appropriate stopper for the implant depth with the Initial Drill Ø1.6 or Ø2.0.
3-Turn and lock the crown guide appropriate for the size of the determined crown guide pin to the stopper.
4-Carry out the initial drilling after connecting the drill, stopper and guide to the implanting position. [1000~1200RPM]
5-Carry out the sequence in 1~4 for the continuous implant, put the crown guide pin in line with the crown size onto the gum, and carry out the drilling as the way in the beginning.

Feature:
1-Depth and distance interval can be solved with only one drilling.
2-Simple and easy drilling.
3-Surgery time can be shortened and possibility of frequent mistakes can be prevented in advance.
4-Ideal Stopper Design & Crown Guide Design.
5-Strength. Both the Crown size and implant depth are simultaneously guided with only one drilling during the initial drilling.
6-The mistake of the widened or narrowed interval between implants can be prevented when two or more implants are placed.
7-The Crown Size and prosthetic appliance can be designed at the same time of implant placing.
Manufactured from high quality surgical materials, with high quality performance.
All drills and tools undergo an anti-rust process.
Made in French Stainless Steel.
Manufacturer by MÜNCHEN STEEL® Stainless Germany.
