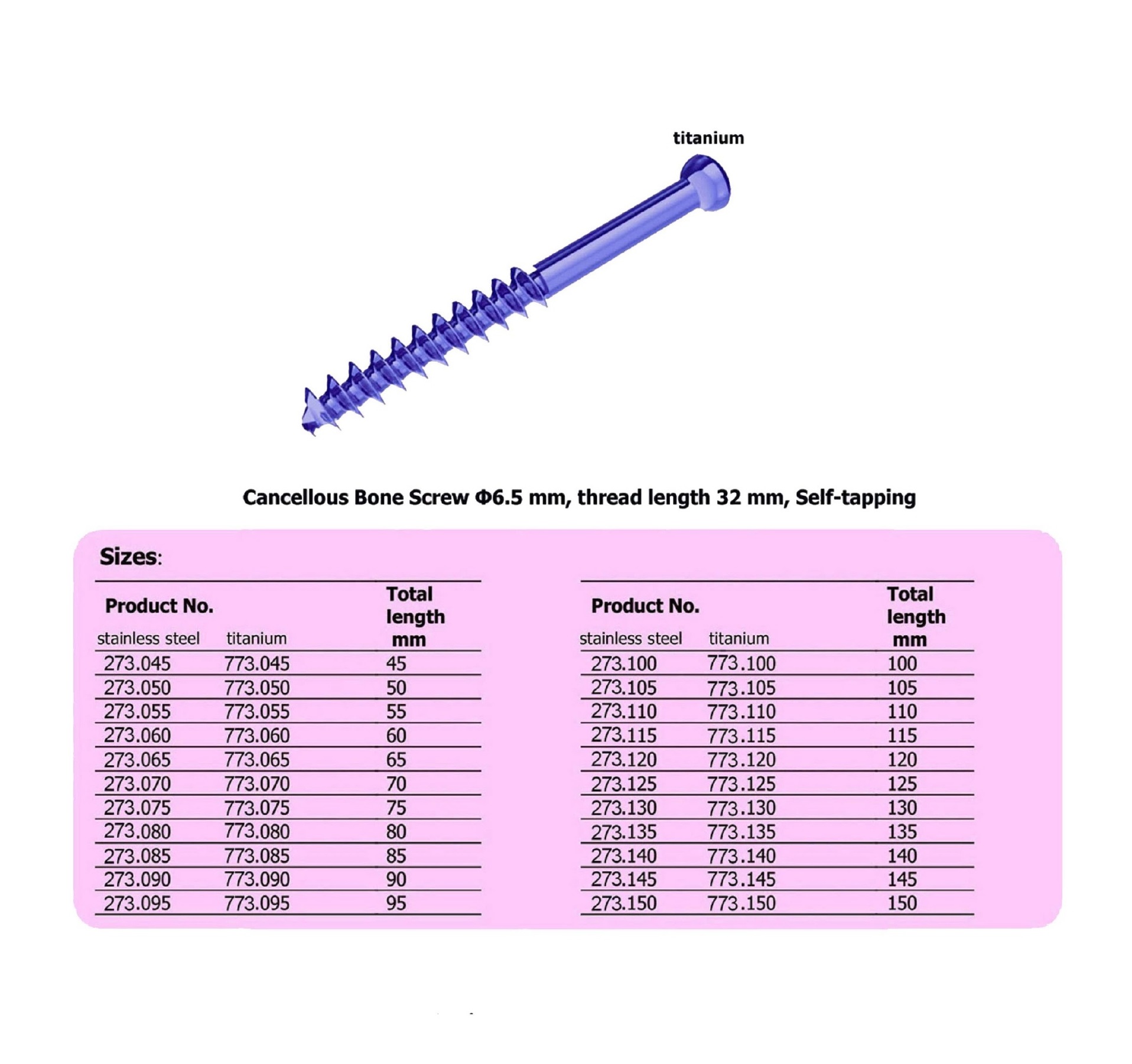

Cancellous Bone Screw 6.5mm, thread length 32mm, Self-tapping, Titanium, (100 ITEMS PER LOT)

Cancellous Bone Screw 6.5mm, thread length 32mm, Self-tapping, Titanium, (100 ITEMS PER LOT)

IMPORTANT NOTICE: Customers Can Choose Different Size By Need. Send us Size and Units with the Note of Your Order. Or you can choose directly one by one from the page. Thank you very much, Product is for Orthopedic use, Hospitals, Clinics, Traumatology and Orthopedics doctors.

Specification:
Thread diameter 6.5 mm
Core diameter 3.2 mm
Head diameter 8.0 mm
Shaft diameter 4.5 mm
Drill bit for threaded hole 3.2 mm
Drill bit for gliding hole 4.5 mm
Hexagonal socket width 3.5 mm
Thread pitch 2.75 mm

Titanium
Product Nº. Total length mm
773.045 -Total length-45mm
773.050 -Total length-50mm
773.055 -Total length-55mm
773.060 -Total length-60mm
773.065 -Total length-65mm
773.070 -Total length-70mm
773.075 -Total length-75mm
773.080 -Total length-80mm
773.085 -Total length-85mm
773.090 -Total length-90mm
773.095 -Total length-95mm

773.100 -Total length-100mm
773.105 -Total length-105mm
773.110 -Total length-110mm
773.115 -Total length-115mm
773.120 -Total length-120mm
773.125 -Total length-125mm
773.130 -Total length-130mm
773.135 -Total length-135mm
773.140 -Total length-140mm
773.145 -Total length-145mm
773.150 -Total length-150mm
Manufacturer by MÜNCHEN STEEL® Stainless Germany.
