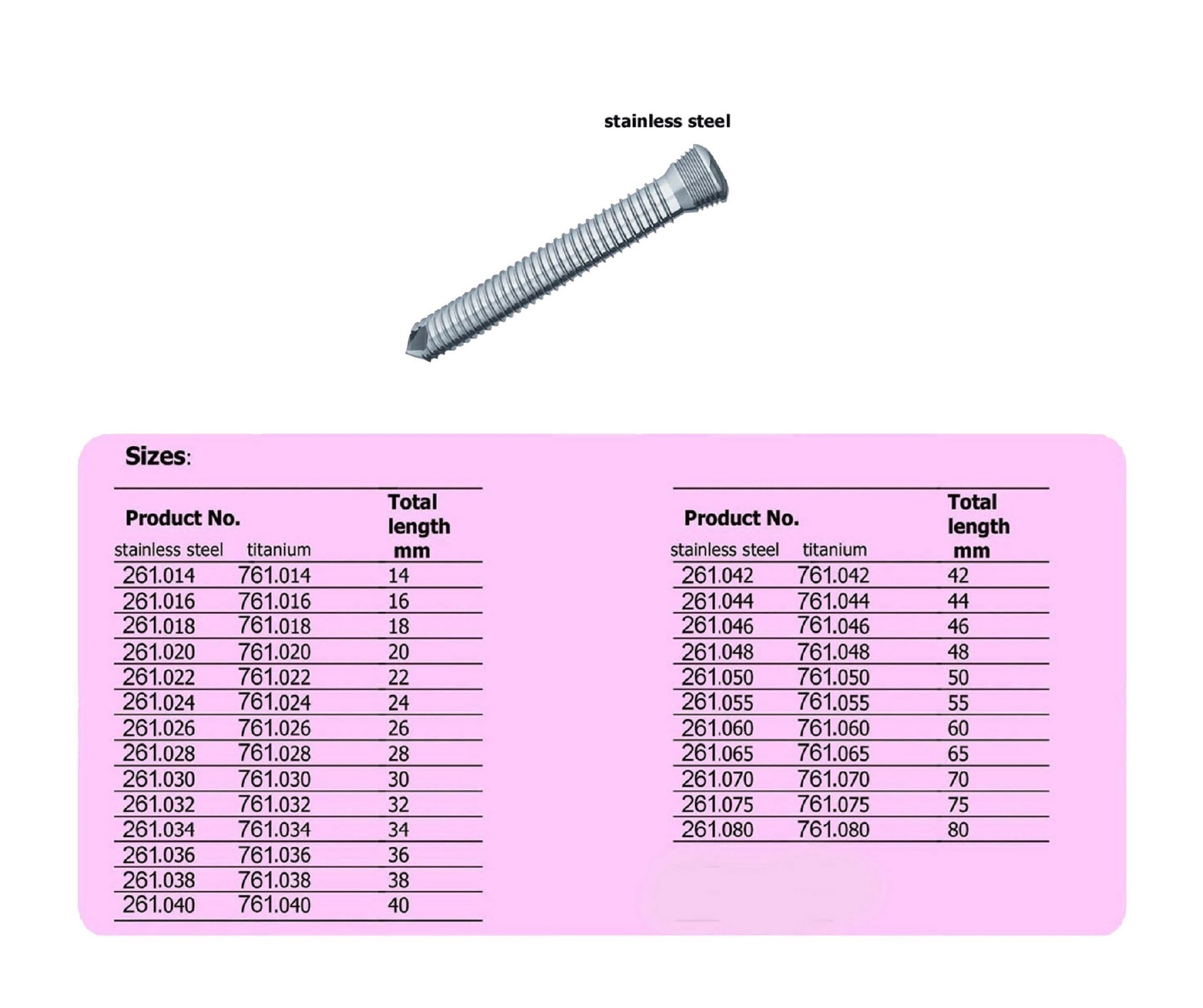

LCP Locking Screw 5.0 mm Self-tapping in Stainless steel (100 ITEMS PER LOT)

LCP Locking Screw 5.0 mm, Self-tapping in Stainless steel, (100 ITEMS PER LOT)

IMPORTANT NOTICE: Customers Can Choose Different Size By Need. Send us Size and Units with the Note of Your Order. Or you can choose directly one by one from the page. Thank you very much, Product is for Orthopedic use, Hospitals, Clinics, Traumatology and Orthopedics doctors.

Specification:
Thread diameter 5. 0 mm
Core diameter 4.4 mm
Head diameter 6.6 mm
Drill bit for threaded hole 4.3 mm
Drill bit for gliding hole 5. 0 mm
Hexagonal socket width 3.5 mm

Stainless steel
Product Nº. Total length mm
261.014 -Total length-14mm
261.016 -Total length-16mm
261.018 -Total length-18mm
261.020 -Total length-20mm
261.022 -Total length-22mm
261.024 -Total length-24mm
261.026 -Total length-26mm
261.028 -Total length-28mm
261.030 -Total length-30mm
261.032 -Total length-32mm
261.034 -Total length-34mm
261.036 -Total length-36mm
261.038 -Total length-38mm
261.040 -Total length-40mm

261.042 -Total length-42mm
261.044 -Total length-44mm
261.046 -Total length-46mm
261.048 -Total length-48mm
261.050 -Total length-50mm
261.055 -Total length-55mm
261.060 -Total length-60mm
261.065 -Total length-65mm
261.070 -Total length-70mm
261 ,075 -Total length-75mm
261.080 -Total length-80mm
Manufacturer by MÜNCHEN STEEL® Stainless Germany.
