Cannulated Bone Screw 4)4.0mm, Self drilling, Short thread,Titanium, (100 ITEMS PER LOT)

Cannulated Bone Screw 4)4.0mm, Self drilling, Short thread,Titanium, (100 ITEMS PER LOT)

IMPORTANT NOTICE: Customers Can Choose Different Size By Need. Send us Size and Units with the Note of Your Order. Or you can choose directly one by one from the page. Thank you very much, Product is for Orthopedic use, Hospitals, Clinics, Traumatology and Orthopedics doctors.

Specification:
Thread diameter 4.0 mm
Core diameter 2.25 mm
Head diameter 5.0 mm
Shaft diameter 2.6 mm
Drill bit for threaded hole 2.7 mm
Hexagonal socket width 2.5 mm
Cannulation 1.35 mm
Thread pitch 1.75 mm

Titanium

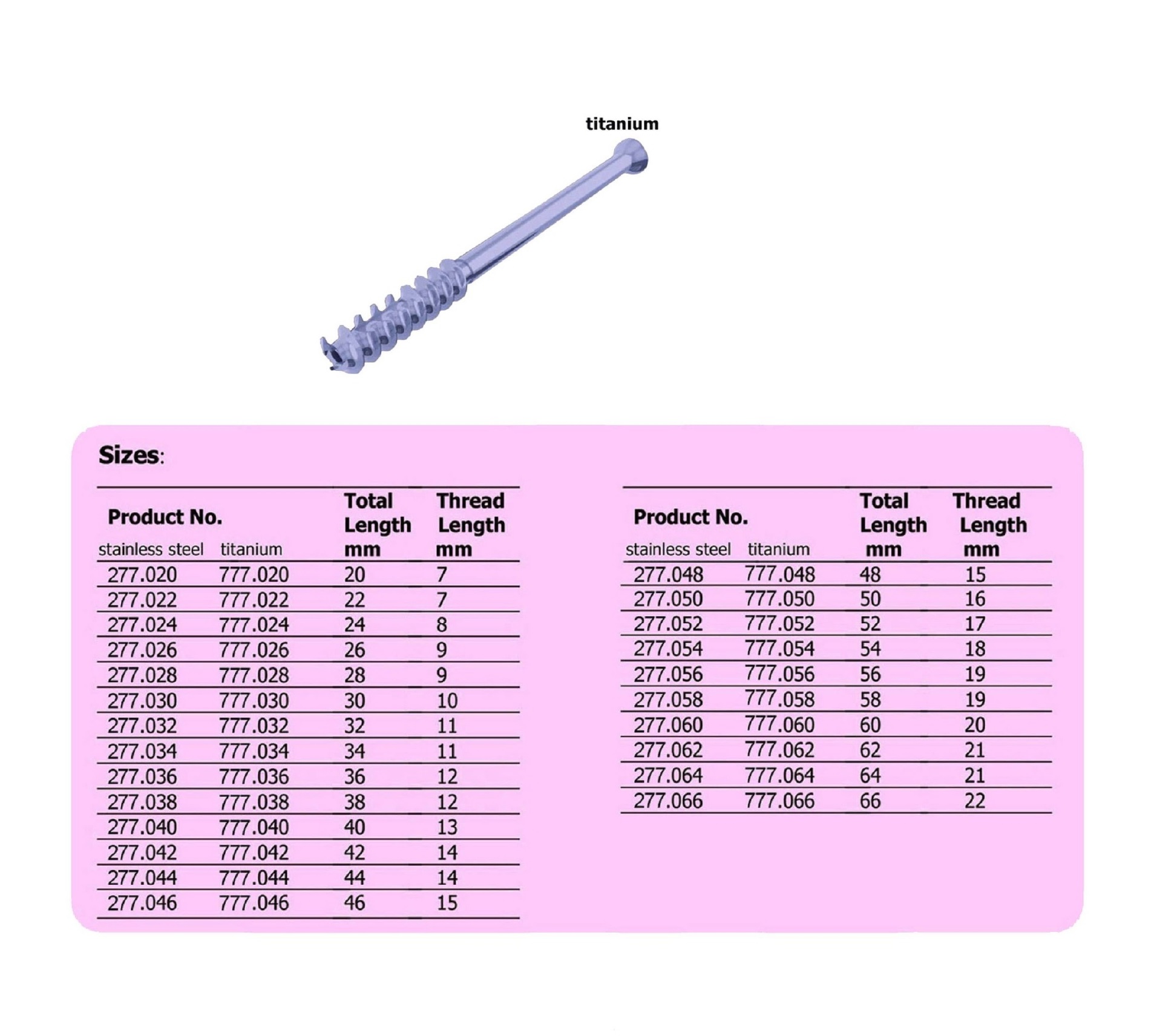

Product Nº. Total length mm
777.020 -Total length-20mm
777.022 -Total length-22mm
777.024 -Total length-24mm
777.026 -Total length-26mm
777.028 -Total length-28mm
777.030 -Total length-30mm
777.032 -Total length-32mm
777.034 -Total length-34mm
777.036 -Total length-36mm
777.038 -Total length-38mm
777.040 -Total length-40mm
777.042 -Total length-42mm
777.044 -Total length-44mm
777.046 -Total length-46mm

777.048 -Total length-48mm
777.050 -Total length-50mm
777.052 -Total length-52mm
777.054 -Total length-54mm
777.056 -Total length-56mm
777.058 -Total length-58mm
777.060 -Total length-60mm
777.062 -Total length-62mm
777.064 -Total length-64mm
777.066 -Total length-66mm
Manufacturer by MÜNCHEN STEEL® Stainless Germany.
