Cannulated Bone Screw 7.0mm, thread length 16mm in Titanium, (100 ITEMS PER LOT)

DESCRIPTION

Cannulated Bone Screw 7.0mm, thread length 16mm in Titanium, (100 ITEMS PER LOT)

IMPORTANT NOTICE: Customers Can Choose Different Size By Need. Send us Size and Units with the Note of Your Order. Or you can choose directly one by one from the page. Thank you very much, Product is for Orthopedic use, Hospitals, Clinics, Traumatology and Orthopedics doctors.

Specification:
Thread diameter 7. 0 mm
Core diameter 4.5 mm
Head diameter 8.0 mm
Shaft diameter 4.5 mm
Drill bit for threaded hole 4.5 mm
Hexagonal socket width 3.5 mm
cannulation 2.2mm
Thread pitch 2.75 mm

Titanium

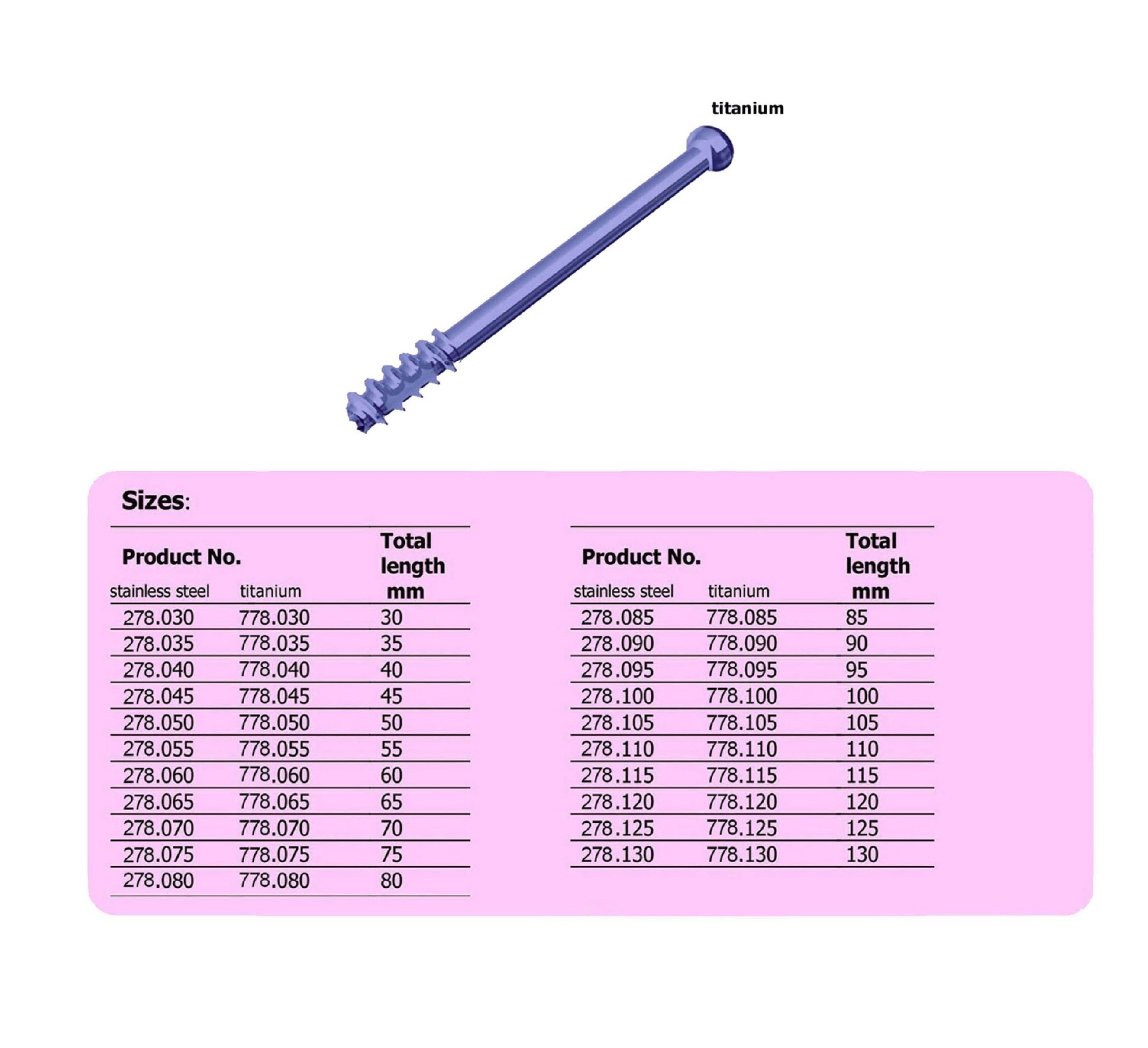

Product Nº. Total length mm
778.030 -Total length-30mm
778.035 -Total length-35mm
778.040 -Total length-40mm
778.045 -Total length-45mm
778.050 -Total length-50mm
778.055 -Total length-55mm
778.060 -Total length-60mm
778.065 -Total length-65mm
778.070 -Total length-70mm
778.075 -Total length-75mm
778.080 -Total length-80mm

778.085 -Total length-85mm
778.090 -Total length-90mm
778.095 -Total length-95mm
778.100 -Total length-100mm
778.105 -Total length-105mm
778.110 -Total length-110mm
778.115 -Total length-115mm
778.120 -Total length-120mm
778.125 -Total length-125mm
778.130 -Total length-130mm
Manufacturer by MÜNCHEN STEEL® Stainless Germany.
