Cortex Screw 3.5 mm Self-tapping in Stainless steel (100 ITEMS PER LOT)

Cortex Screw 3.5 mm, Self-tapping in Stainless steel, (100 ITEMS PER LOT)

IMPORTANT NOTICE: Customers Can Choose Different Size By Need. Send us Size and Units with the Note of Your Order. Or you can choose directly one by one from the page. Thank you very much, Product is for Orthopedic use, Hospitals, Clinics, Traumatology and Orthopedics doctors.

Specification:
Thread diameter 3.5 mm
Core diameter 2. 4 mm
Head diameter 6.0 mm
Drill bit for threaded hole 2.7 mm
Drill bit for gliding hole 3.5 mm
Hexagonal socket width 2.5 mm
Thread pitch 1.25 mm

Stainless steel

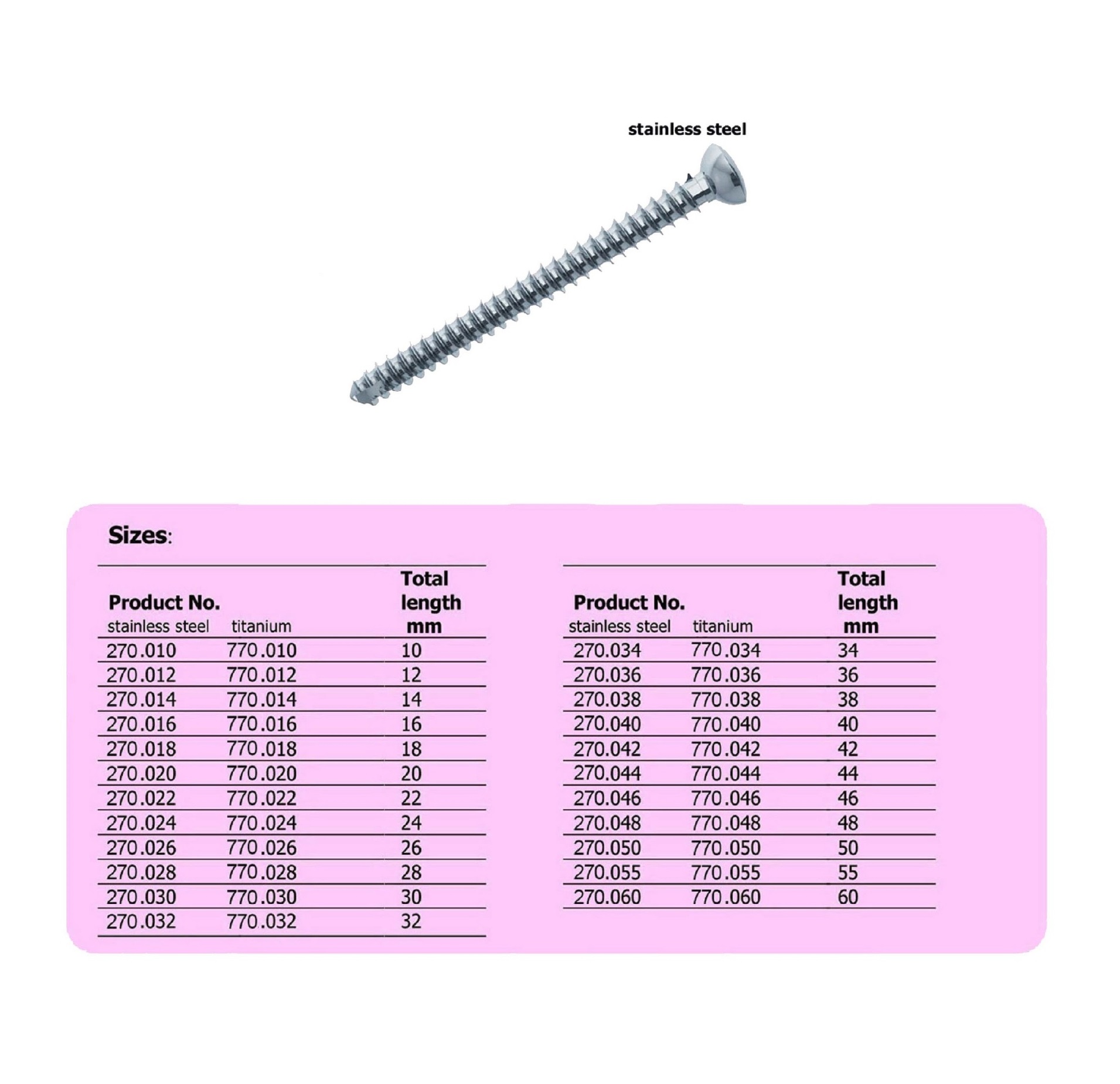

Product Nº. Total length mm
270.010 -Total length-10mm
270.012 -Total length-12mm
270.014 -Total length-14mm
270.016 -Total length-16mm
270.018 -Total length-18mm
270.020 -Total length-20mm
270.022 -Total length-22mm
270.024 -Total length-24mm
270.026 -Total length-26mm
270.028 -Total length-28mm
270.030 -Total length-30mm
270.032 -Total length-32mm

270.034 -Total length-34mm
270.036 -Total length-36mm
270.038 -Total length-38mm
270.040 -Total length-40mm
270.042 -Total length-42mm
270.044 -Total length-44mm
270.046 -Total length-46mm
270.048 -Total length-48mm
270.050 -Total length-50mm
270.055 -Total length-55mm
270.060 -Total length-60mm
Manufacturer by MÜNCHEN STEEL® Stainless Germany.
