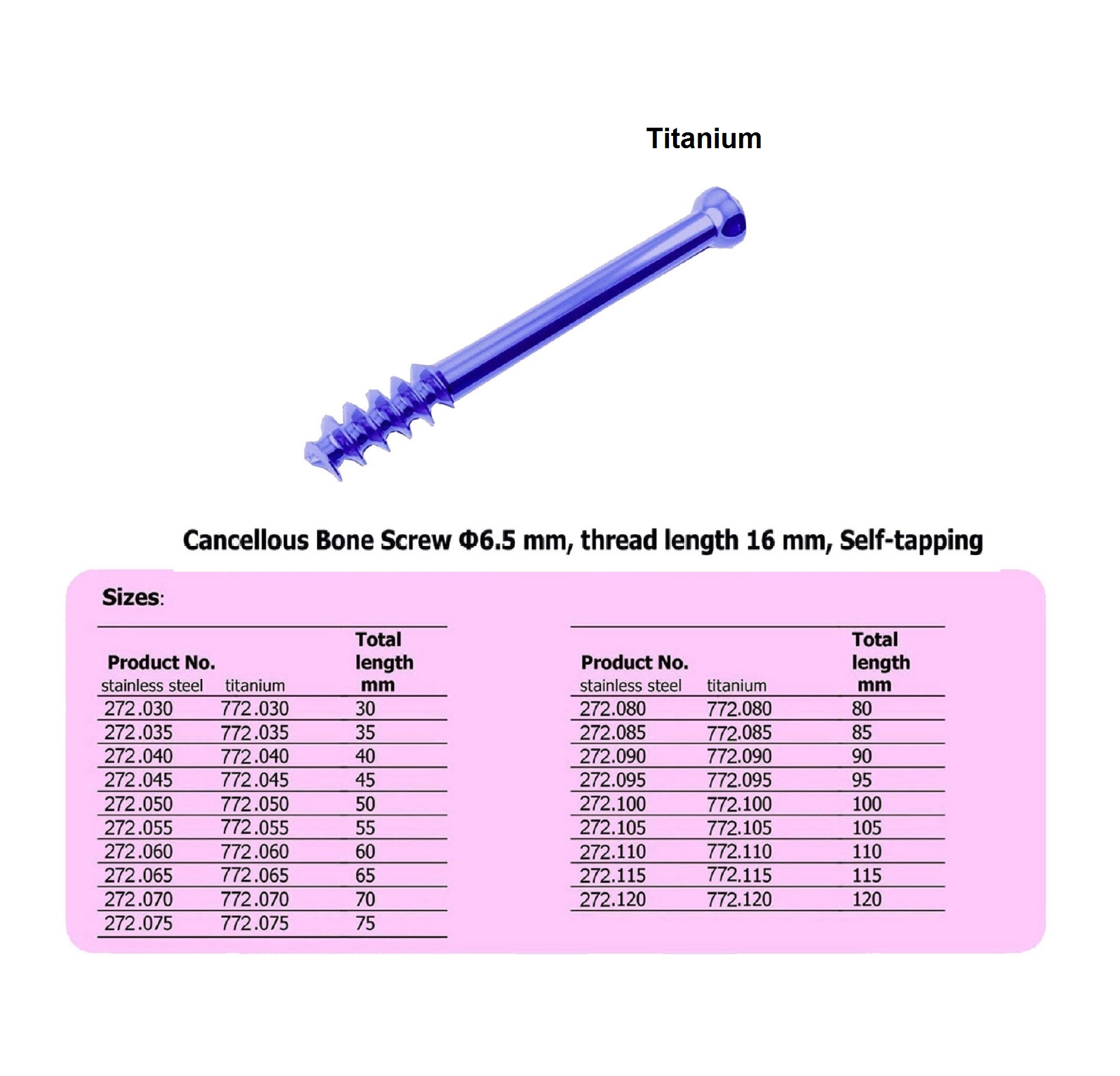

Cancellous Bone Screw 6.5mm, thread length 16mm, Self-tapping, Titanium, (100 ITEMS PER LOT)

Cancellous Bone Screw 6.5mm, thread length 16mm, Self-tapping, Titanium, (100 ITEMS PER LOT)

IMPORTANT NOTICE: Customers Can Choose Different Size By Need. Send us Size and Units with the Note of Your Order. Or you can choose directly one by one from the page. Thank you very much, Product is for Orthopedic use, Hospitals, Clinics, Traumatology and Orthopedics doctors.

Specification:
Thread diameter 6.5 mm
Core diameter 3.2 mm
Head diameter 8. 0 mm
Shaft diameter 4.5 mm
Drill bit for threaded hole 3.2 mm
Drill bit for gliding hole 4.5 mm
Hexagonal socket width 3.5 mm
Thread pitch 2.75 mm

Titanium
Product Nº. Total length mm
772 .030 -Total length-30mm
772.035 -Total length-35mm
772.040 -Total length-40mm
772.045 -Total length-45mm
772 .050 -Total length-50mm
772 .055 -Total length-55mm
772.060 -Total length-60mm
772 .065 -Total length-65mm
772 .070 -Total length-70mm
772.075 -Total length-75mm

772.080 -Total length-80mm
772.085 -Total length-85mm
772.090 -Total length-90mm
772.095 -Total length-95mm
772.100 -Total length-100mm
772.105 -Total length-105mm
772.110 -Total length-110mm
772.115 -Total length-115mm
772.120 -Total length-120mm
Manufacturer by MÜNCHEN STEEL® Stainless Germany.
